    RS232 Connector Optical Probe for Communication Interface 32mm Diameter

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC-232/USB-IEC-TL
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T,L/C,D/P,T/T
    Supply Ability : 10 pcs/ 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

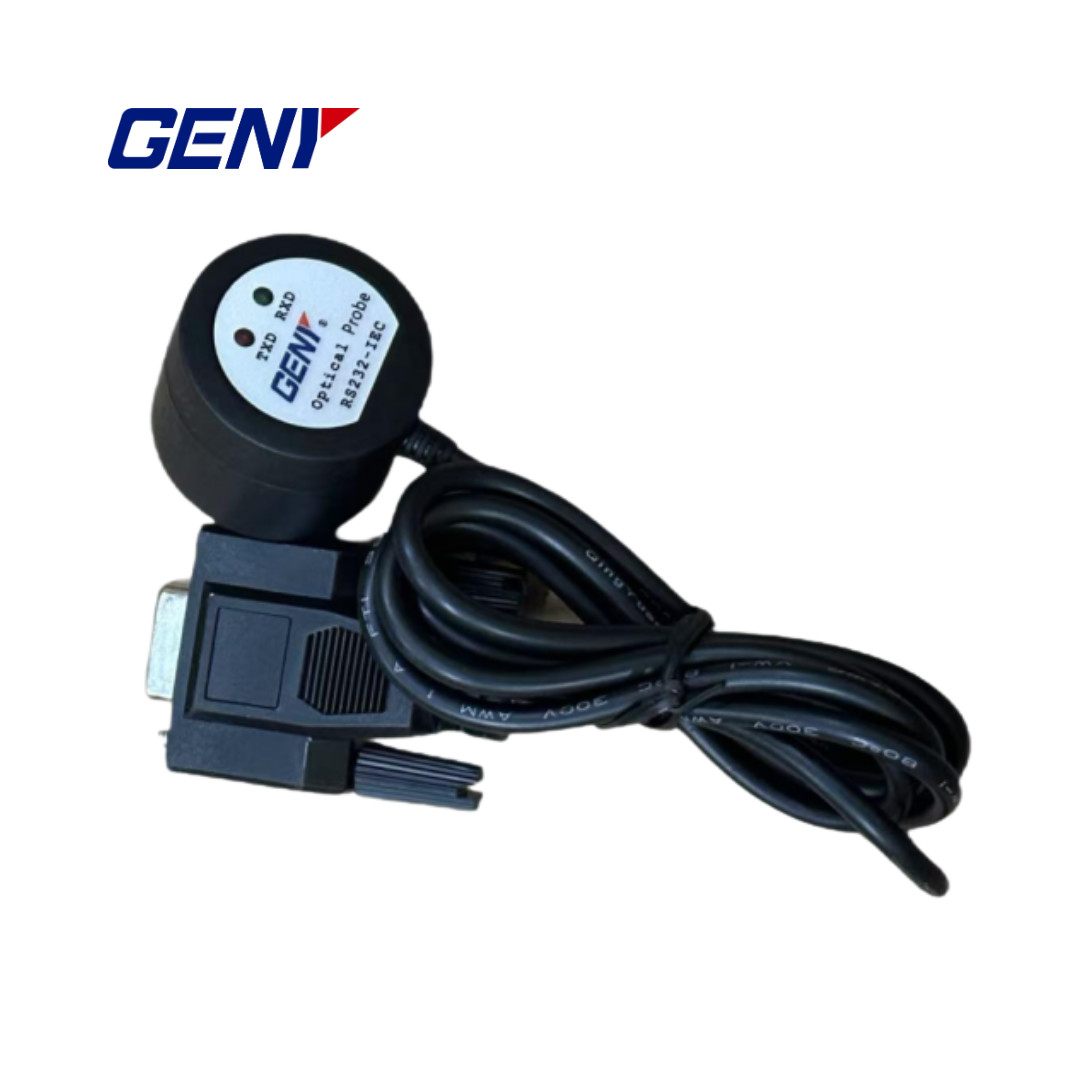

    RS232 Connector Optical Probe for Communication Interface 32mm Diameter

    RS232 connector Optical Probe


    Technical Specifications



    Items

    Features

    Communication Interface

    RS232

    Supported Standard

    IEC 62056-21 / ANSI / ANSI-Type2

    Maximum B.R.

    115200

    Connector

    RS232(DB9)

    Sensor Light Wave Length

    RS232 Connector Optical Probe for Communication Interface 32mm Diameter900 nm.

    Cable length

    1.5M in normal and 1M/2M/3M for option

    Fastening

    Strong magnetic adhesion (in accordance with IEC

    62056-21)

    Magnet Holding Power

    N40 / N54 (Optional)

    Mechanical

    Impact PBT+GF housing

    Environment

    Application temperature: -40℃~70℃ in normal

    Diameter & Height

    Optical port 32mm Diameter / H23mm

    Weight

    80gr

    Enclosure Material

    PBT+GF

    Protection Class

    IP 54





    RS232 Connector Optical Probe for Communication Interface 32mm Diameter
