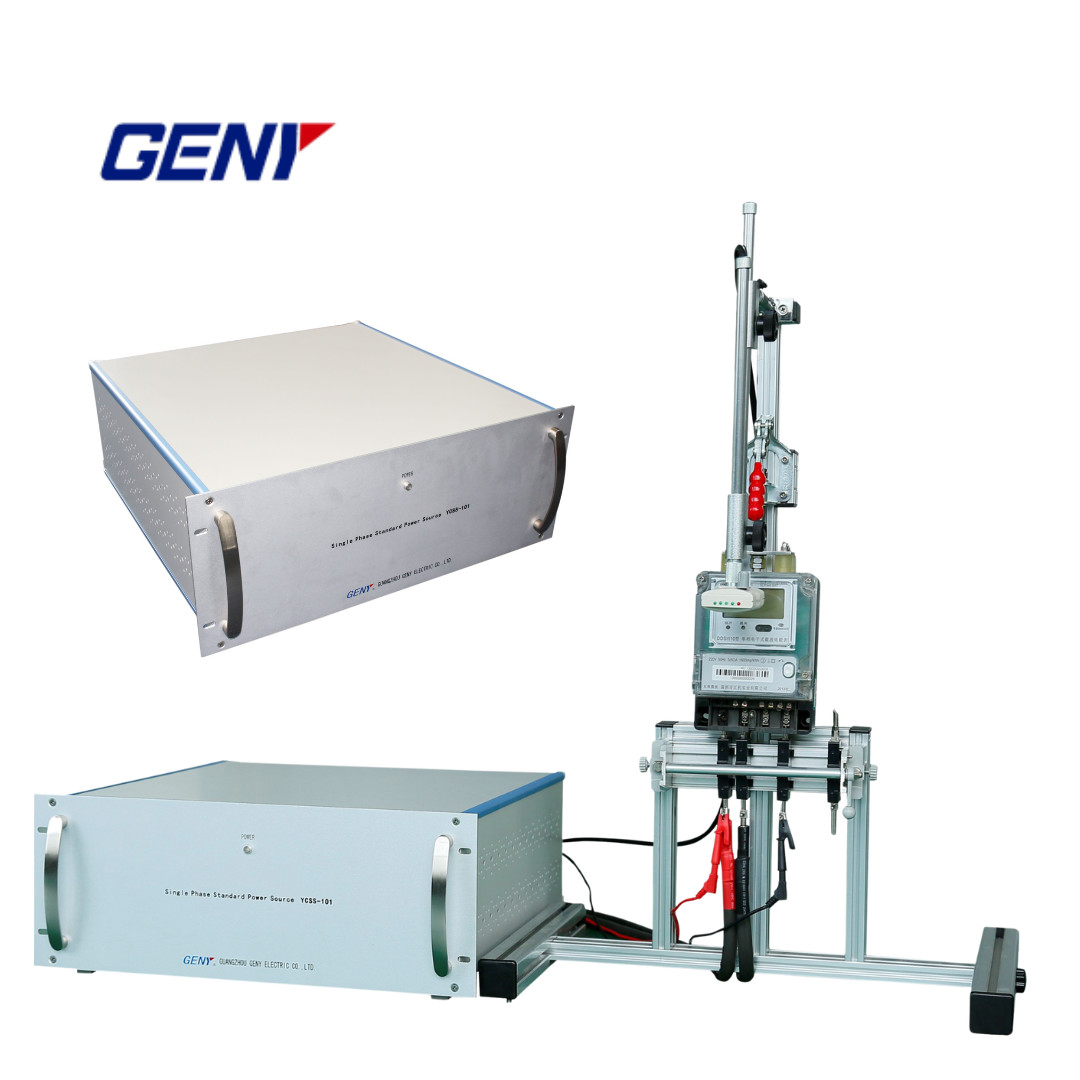

    YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YCSS-101
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T, L/C, D/P, T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing

    YCSS-101 Portable Precision Single-Phase Power Standard for Advanced Testing


    Specifications

    Voltage
    Test voltage output0V-480VResolution1mV
    Power of the voltage outputMax.25VASetting accuracy0.05% at 50-400V
    Stability0.03%/h (integration time 150s)Harmonics2nd-41st free programmable
    Distortion factor<0.2% for linear resistance load
    Current
    Test current output1mA-120ASetting accuracy0.05% at 1mA-120A
    Power of the voltage outputMax.120VAStability0.003%/h (Integration time 150s)
    Resolution0.2mADistortion factor<0.2% for linear resistance load
    Harmonics2nd-21st free programmable
    Phase angleFrequency
    Range0°-360°Range45Hz-65Hz
    Resolution0.001°Resolution0.0001Hz
    Setting accuracy0.005°
    Pulse output
    High frequency output>20A FH=10^7; >2A FH=10^8; >0.2A FH=10^9
    Pulse Input
    Input channel2
    Input frequencyMax.100kHz
    Other
    Voltage Supply220V±10% 50/60Hz±2HzDimensions (W×H×D) (mm)484x184×543
    Ambient temperature-10°C-+40°CWeight (kg)15
    Relative humidity35%-85%ConformityCE conform

    Features & Functions

    • Compact Power Solution:A portable system with integrated precision and power for essential testing needs.
    • Cost-Effective Performance:Premium performance at a fraction of the cost, leading industry value.
    • Wide-Range Outputs:Versatile for diverse tests with 0V-480V voltage and 1mA-120A current capabilities.
    • Efficient Calibration:Dual-pulse signal input for synchronized or individual meter calibration, boosting accuracy.
    • Flexible Controls:Manual or PC-operated, catering to your operational preference.
    • Seamless Integration:Quick connect with existing systems and PCs for enhanced control and communication.

    YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing

    YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing


    YCSS-101 Portable Precision Single-Phase Power Standard For Advanced Testing


    If you would like to explore further details, please navigate to the following URL:http://www.genymetertestequipment.com/
