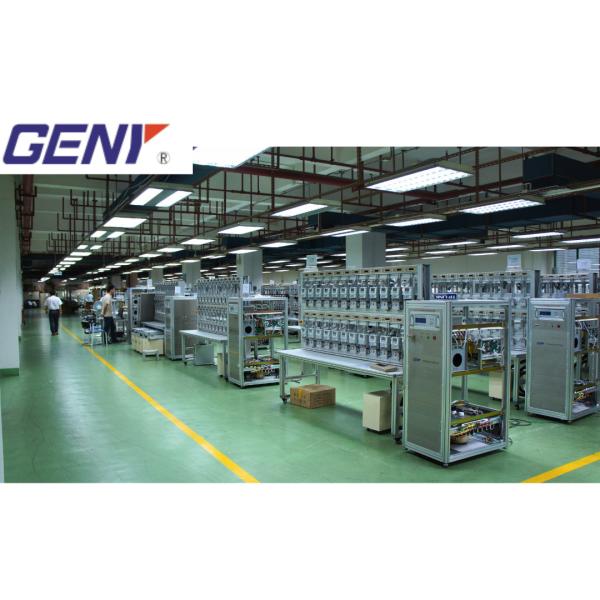

    Buy cheap A customised three-phase meter test bench for digital display and direct installation from wholesalers

    Buy cheap A customised three-phase meter test bench for digital display and direct installation from wholesalers
    • Buy cheap A customised three-phase meter test bench for digital display and direct installation from wholesalers

    A customised three-phase meter test bench for digital display and direct installation

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC-1893D
    Certification : ISO, CE
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 100/Year
    • Product Details
    • Company Profile

    A customised three-phase meter test bench for digital display and direct installation

    A customised three-phase meter test bench for digital display and direct installation

    Specifications


    Technical spec.YC1893D-ICT-6YC1893D-ICT-12YC1893D-ICT-24YC1893D-ICT-48
    Number of meter positions equipped ICT6122448
    Accuracy class of ICT0.05 / 0.01
    Accuracy0.05
    Power SourceYCS-103-250YCS-103-600YCS-103-1200YCS-103-2500
    Standard MeterSZ03A-K6 / SZ03A-K8 (customized)
    Scanning HeadYCG-S Series
    Voltage
    Test voltage output(Phase-Neutral)3x(24V~288V)(or customized)
    Power of the voltage outputMax. 3x100VAMax. 3x250VA

    Max.

    3x500VA

    Max.

    3x1000VA

    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005% /h (integration time 150s)
    Load regulation from 0~max. loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonic2nd~21st free programmable
    Current
    Test current output3x(1mA~100A)
    Power of the current outputMax. 3x150VAMax. 3x350VAMax. 3x750VAMax. 3x1500VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005% /h (integration time 150s)
    Load regulation from 0~max. loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonic2nd~21st free programmable
    Phase angle
    Range0~360⁰
    Resolution0.01⁰
    Setting accuracy0.1⁰
    Frequency
    Range45Hz~65Hz
    Resolution0.01Hz
    Error display
    Type of error displayRed LED
    Resolution of error displays8 digitals
    Other
    Voltage supply

    3x220/380V±10%(or customized)

    50/60Hz ±2Hz

    Ambient temperature-10°C~+40°C
    Relative humidity35%~85%

    Description


    • ICT Integration: Each meter position integrates ICT for testing three-phase meters with closed current-voltage links (I-P links).
    • Meter Compatibility: Supports mechanical, electronic mechanical, and electronic meters.
    • Operation Modes: Flexible operation modes: automatic, semi-automatic, manual.
    • Testing Modes: Measures active power, reactive power, cross-connected reactive power.
    • Efficiency Feature: Automatic rotor mark positioning on mechanical meters for enhanced efficiency.
    • Protection Functions: Overload, short voltage circuit, open current circuit protection.
    • Control Simplification: Synchronized scanning head movement for simplified control.
    • Material: Lightweight, strong, corrosion-resistant aluminum alloy.
    • Software: Compatible with Windows 2000/XP/7/8/10, featuring modern energy meter testing modules including error, harmonic, demand, and influence tests.
