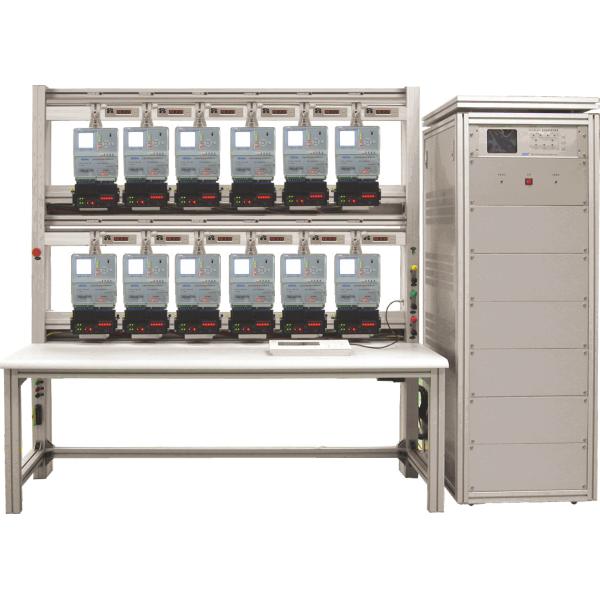

    YC1893D-ICT Meter Testing Bench Closed Links Meter Test System With ICT

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC1893D-ICT
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T, L/C, D/P, T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    YC1893D-ICT Meter Testing Bench Closed Links Meter Test System With ICT

    Professional Stationary Meter Test Equipment for Closed Links Meters with ICT

    Three Phase Closed Links Meter Test System

    Technical Data:

    • Accuracy class : 0.05
    • Easy to calibrate I-P closed links meters with isolated current transformer(ICT)

    Technical spec.YC1893D-ICT-6YC1893D-ICT-12YC1893D-ICT-24YC1893D-ICT-48
    Number of meter positions equipped ICT6122448
    Accuracy class of ICT0.05 / 0.01
    Accuracy0.05
    Power SourceYCS-103-250YCS-103-600YCS-103-1200YCS-103-2500
    Standard MeterSZ03A-K6 / SZ03A-K8 (customized)
    Scanning HeadYCG-S Series
    Voltage
    Test voltage output(Phase-Neutral)3x(24V~288V)(or customized)
    Power of the voltage outputMax. 3x100VAMax. 3x250VA

    Max.

    3x500VA

    Max.

    3x1000VA

    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005% /h (integration time 150s)
    Load regulation from 0~max. loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonic2nd~21st free programmable
    Current
    Test current output3x(1mA~100A)
    Power of the current outputMax. 3x150VAMax. 3x350VAMax. 3x750VAMax. 3x1500VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005% /h (integration time 150s)
    Load regulation from 0~max. loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonic2nd~21st free programmable
    Phase angle
    Range0~360⁰
    Resolution0.01⁰
    Setting accuracy0.1⁰
    Frequency
    Range45Hz~65Hz
    Resolution0.01Hz
    Error display
    Type of error displayRed LED
    Resolution of error displays8 digitals
    Other
    Voltage supply

    3x220/380V±10%(or customized)

    50/60Hz ±2Hz

    Ambient temperature-10°C~+40°C
    Relative humidity35%~85%

    Description:

    1. Install the ICT in each meter position to test three-phase meters with closed current and voltage measuring circuits (I-P links).
    2. The meter test system can measure mechanical meters, electronic mechanical meters, and electronic meters through automatic, semi-automatic, or manual operations.
    3. Meters being tested: 3P4W, 3P3W, 1P2W.
    4. Testing modes: active power, reactive power, cross-connected reactive power.
    5. Simultaneously measure meters with the same specifications but different meter constants.
    6. Automatically position the rotor mark of the disc of the mechanical meter, with higher efficiency.
    7. Starting test and creeping test.
    8. With protection functions of overload, short voltage circuit, and open current circuit.
    9. The swing of the scanning heads together simplifies the control.
    10. Made of aluminum alloy material, light, strong, and corrosion-resistant.
    11. The testing software with a friendly Windows 2000/XP/7/8/10 operating system includes functional modules of various modern energy meters required to realize error testing, harmonic testing, demand testing, influence testing, etc.

    Applications:

    1. National utility companies
    2. Governmental metrology bureaus
    3. Large energy meter manufacturers

    Primary Competitive Strengths:

    1. High quality product

    2. Over 18 months long warranty

    3. High accuracy class: 0.05
    *** highest accuracy can reaches to 0.01% under 3 meter positions***

    4. 3~48 Three Phase Electric Energy Meter Test bench

    5. Extremely high power stability

    6. Timing error test

    7. Influence test of voltage, frequency, and harmonic

    8. Installing RS232, Ethernet communication port in each meter position.

    9. Tilt impact test (optional)
