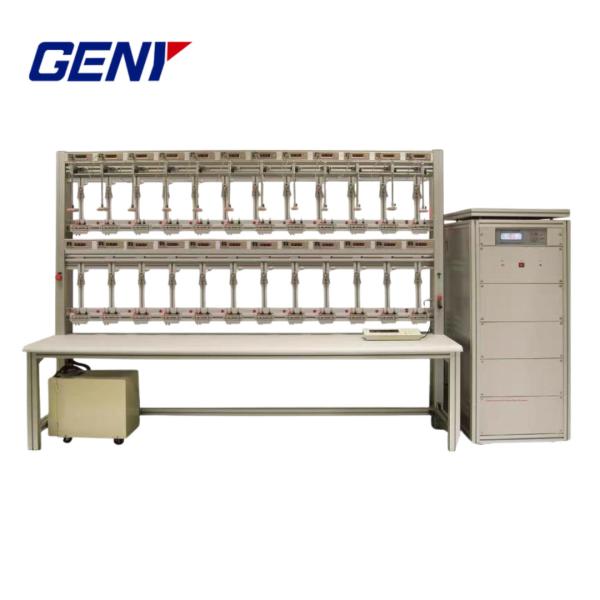

    Verification Electric Meter Test Board Yc1891d Single Phase Energy Meter Testing

    Ask Lasest Price
    Certification : ISO, CE
    Supply Ability : 100/Year
    Payment Terms : L/C, T/T, D/P
    Brand Name : GENY
    Model Number : YC1891D
    • Product Details
    • Company Profile

    Verification Electric Meter Test Board Yc1891d Single Phase Energy Meter Testing

    Electric Equipment Yc1891d Single-phase Meter Test Board for Verification Equipment

    Product Parameters:


    Application Conditions and Requirement
    EnvironmentPower RequirementSafety
    OperationHumidityAltitudeVoltage SupplyIP ClassConformity
    Temperature
    -10°C--+40°C35%--85%< 2500m3x220/380v±10%(or customized)IP 30CE conformity
    50/60Hz±2Hz
    TypeYC1891D-6YC1891D-12YC1891D-24YC1891D-48
    Number of meter positions6122448
    Accuracy0.05
    Power SourceYC8-101-250YCS-101-600YCS-101-1200YCS-101-2500
    Standard MeterSZ-01A-K3
    MSTVHJ200G-6HJ200G-12HJ200G-24HJ200G- 48
    Scanning HeadYCG-2-series
    Voltage
    Test voltage output (Phase-Neutral)24V-300V(or customized)
    Power of the voltage outputMax.100VAMax.250VAMax.500VAMax.1000VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h(integration time 150 s)
    Load regulation from O-max.loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonics2nd - 41st free programmable
    Current
    Test current output1mA-120A/200A
    Power of the current outputMax.250VA Max.500VA Max.1000VA Max.2000VA
    ResolutionBetter than 0.01% of full scale value of range
    Setting accuracyBetter than 0.05% at the final range value
    StabilityBetter than 0.005%/h(integration time 150 s)
    Load regulation from O-max.loadBetter than 0.01%
    Distortion factorBetter than 0.3% for linear resistance load
    Harmonics2nd - 41st free programmable
    Phase angle
    Phase angle0°-360°
    Resolution0.01°
    Setting accuracy0.1°
    Frequency
    Range45Hz-65Hz
    Resolution0.01Hz
    Error display
    Type of error displayRed LED
    Resolution of the error displays8 digits

    Product Feature Highlights:


    1.Universal Meter Testing: Tests 1P2W and various meter types with precision, offering automatic, semi-automatic, and manual modes.


    2.Sophisticated Power Analysis: Advanced modes for active and reactive power testing, compatible with MSVT for single-phase meters with I-P links.


    3.Optional Automated Calibration: Equips RS232 and Ethernet ports for streamlined electronic meter calibration.


    4.Durable Design: Constructed with aluminum alloy for lightweight strength and corrosion resistance.


    5.Efficiency Enhancers: Automatic rotor mark positioning and synchronized scanning head control.


    6.Comprehensive Test Suite: Includes start, creep, and synchronous constant measurement tests.


    7.Safety Protections: Equipped with overload, short circuit, and open circuit protection.


    8.Intuitive Software Interface: Compatible with Windows 10 and XP, offering complete testing modules for modern energy meters.


    9.Data Exportability: Easily transfer test data in multiple formats for further analysis.


    10.CE Certified Compliance: Ensures adherence to EU health and safety standards.


    Verification Electric Meter Test Board Yc1891d Single Phase Energy Meter Testing
    Verification Electric Meter Test Board Yc1891d Single Phase Energy Meter Testing
    *If you want to know more please check our official website:http://www.genymetertestequipment.com/
